3-Strand Mooring Pendants
The most durable pendants for your boat

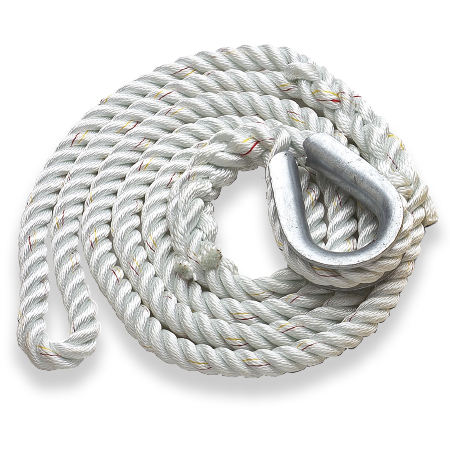

3-strand mooring pendants are manufactured from our Premium 3-Strand Nylon line.
Each pendant has a factory-spliced heavy duty galvanized thimble on the buoy end and a 12” soft eye on the boat end. Optional Cordura® chafe sleeve may be applied to enhance abrasion resistance. New England Ropes recommends the use of a swivel placed at the buoy to help eliminate twisting of the rope which can cause hockels or the rope to fall out of lay.
FEATURES
Material: 3-Strand high-grade marine nylon Applications: mooring pendant
technical data
| Stock Code [Poly/Nylon] | Diameter [mm] | Diameter [inch] | Eye [inch] | Weight [lbs/100′] | Tensile [lbs] |
|---|---|---|---|---|---|
| C539K6-20-00012 | 16 | 5/8 | 12 | 11.10 | 15,000 |
| C539K6-20-00015 | 16 | 5/8 | 12 | 11.10 | 15,000 |
| C539K6-24-00012 | 18 | 3/4 | 15 | 15.90 | 20,900 |
| C539K6-24-00015 | 18 | 3/4 | 15 | 15.90 | 20,900 |
| C539K6-24-00020 | 18 | 3/4 | 15 | 15.90 | 20,900 |
| Stock Code [3-Strand] | Diameter [mm] | Diameter [inch] | Eye [inch] | Weight [lbs/100′] | Tensile [lbs] |
|---|---|---|---|---|---|
| C629K0-20-00012 | 16 | 5/8 | 12 | 11.10 | 15,000 |
| C629K0-20-00015 | 16 | 5/8 | 12 | 11.10 | 15,000 |
| C629K0-20-00012 | 18 | 3/4 | 15 | 15.90 | 20,900 |
| C629K0-20-00015 | 18 | 3/4 | 15 | 15.90 | 20,900 |
| C629K0-20-00020 | 18 | 3/4 | 15 | 15.90 | 20,900 |
| C629K0-20-00020 | 24 | 1 | 20 | 15./90 | 27,700 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal
