Endura 12

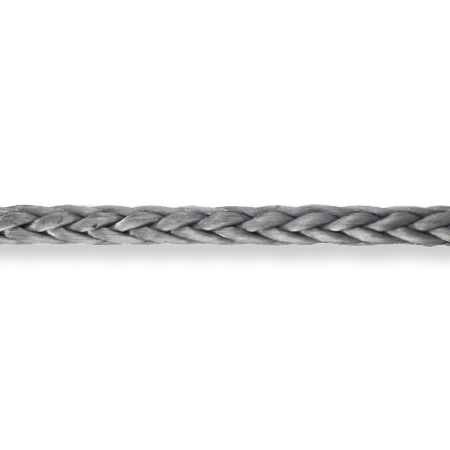

12-strand Dyneema® rope
This light weight, low-stretch, 12-strand single braid is treated with our unique marine-tech coating for excellent abrasion and UV resistance, has a specific gravity of 0.97 and it floats.
Use the following codes when ordering. X: 0=White, 1=Red, 2=Green, 3=Blue, 4=Black, 5=Orange, 6=Yellow (not shown), 7=Fluorescent Green (not shown), 8=Gray
Low stretch and very high strength, Endura 12 features 100% Dyneema® fiber.
FEATURES
Material: Dyneema® SK75 Applications: cascade lines, halyards, wire rope replacement, cunninghams, vang systems
red
green
gray
blue
white
orange
technical product data
| Product Name | Diameter [mm] | Diameter [inch] | Weight [lbs/100′] | Tensile [lbs] |
|---|---|---|---|---|
| C152*-02-00600 | 2 | 3/32 | 0.20 | 1,000 |
| C152*-03-00600 | 2.5 | 7/64 | 0.28 | 2,200 |
| C152*-04-00600 | 3 | 1/8 | 0.50 | 2,800 |
| C152*-05-00600 | 4 | 5/32 | 0.65 | 4,300 |
| C152*-06-00600 | 5 | 3/16 | 1.20 | 6,050 |
| C152*-08-00600 | 6 | 1/4 | 1.70 | 9,700 |
| C152*-10-00600 | 8 | 5/16 | 2.55 | 14,500 |
| C152*-12-00600 | 10 | 3/8 | 3.40 | 18,800 |
| C152*-14-00600 | 11 | 7/16 | 4.20 | 24,000 |
| C152*-16-00600 | 12 | 1/2 | 6.15 | 34,300 |
| C152*-18-00600 | 14 | 9/16 | 7.20 | 42,000 |
| C152*-20-00600 | 16 | 5/8 | 10.10 | 58,000 |
| C152*-24-00600 | 18 | 3/4 | 14.74 | 67,000 |
| C152*-28-00600 | 22 | 7/8 | 18.8 | 97,500 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal
