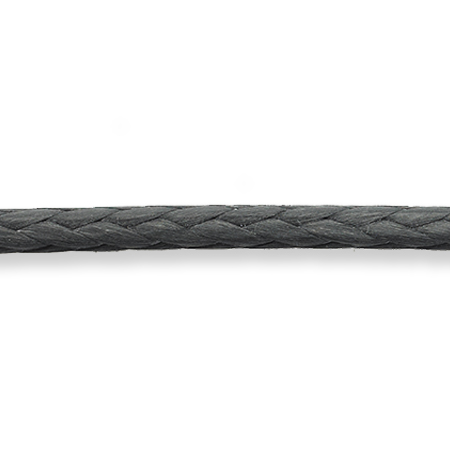

HTS-99

High Modulus Lightweight Dyneema®Line

Ultra-light and exceptionally strong, HTS-99 utilizes 100% Dyneema® SK-99 fiber.

FEATURES
  • 12 Strand single braid
  • UV resistant
  • specific gravity - 0.97

Material: Dyneema® SK99
Applications: stropx, loops, halyard cores, wire rope replacement
DESCRIPTION
The use of this high modulus fiber results in increased strength and excellent creep resistance.
technical product data
Product Name Diameter [mm] Diameter [inch] Weight [lbs/100′] Tensile [lbs]
C1394-01-00600 1 3/64 0.08 600
C1394-02-00600 2 3/32 0.24 2,000
C1394-03-00600 3 1/8 0.40 3,500
C1394-04-00600 4 5/32 0.62 5,200
C1394-05-00600 5 3/16 1.18 10,400
C1394-06-00600 6 1/4 1.71 14,000
C1394-08-00600 8 5/16 2.75 20,800



Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal
