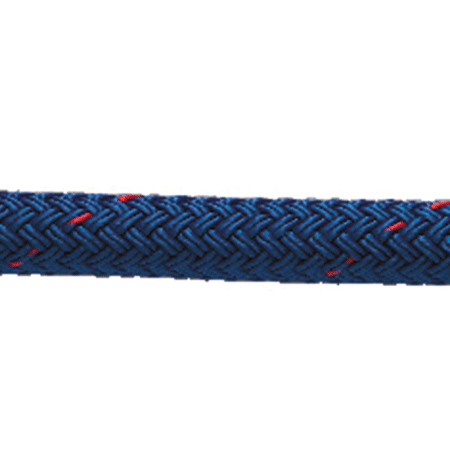

Large Diameter Dock Lines
Designed for larger boats, our premium 1 inch docklines incorporates a chafe sleeve on the eye and along the line itself for additional strength and abrasion resistance. Made with premium marine nylon, our large diameter dock lines are available in 3-Strand and Double Braid. The 35 foot docklines feature an 18 inch professionally spliced eye while the 50 foot docklines feature a 20 inch professionally spliced eye.
FEATURES
Material:Cover: Nylon; Core: Nylon
3-strand white
3-strand black
double braid white
double braid blue
double braid black
double braid white-gold
technical product data 3-Strand Braided Nylon
| Stock Code | Description | Diameter [mm] | Diameter [in] | Length [ft] | Tensile [lbs] | Weight [lbs] |
|---|---|---|---|---|---|---|
| C6054-32-00035 | Black | 24 | 1 | 35 | 27,700 | 24.30 |
| C6050-32-00035 | White | 24 | 1 | 35 | 27,700 | 24.30 |
| C6054-32-00050 | Black | 24 | 1 | 50 | 27,700 | 24.30 |
| C6050-32-00050 | White | 24 | 1 | 50 | 27,700 | 24.30 |
technical product data double braid
| Stock Code | Description | Diameter [mm] | Diameter [in] | Length [ft] | Tensile [lbs] | Weight [lbs] |
|---|---|---|---|---|---|---|
| C57464-32-00035 | Black | 24 | 1 | 35 | 36,000 | 24.40 |
| C57460-32-00035 | White | 24 | 1 | 35 | 36,000 | 24.40 |
| C57463-32-00035 | Blue | 24 | 1 | 35 | 36,000 | 24.40 |
| C57469-32-00035 | White-Gold | 24 | 1 | 35 | 36,000 | 24.40 |
| C57464-32-00050 | Black | 24 | 1 | 50 | 36,000 | 24.40 |
| C57460-32-00050 | White | 24 | 1 | 50 | 36,000 | 24.40 |
| C57463-32-00050 | Blue | 24 | 1 | 50 | 36,000 | 24.40 |
| C57469-32-00050 | White-Gold | 24 | 1 | 50 | 36,000 | 24.40 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal
