Mega Braid

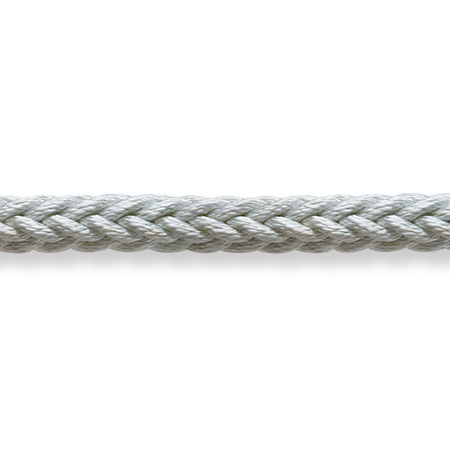

The Mega Braid form New England Rope combines great look, excellent handling, superb strength and controlled elongation.
Developed for anchoring and docking on yachts longer than 40 ft. Mega Braid’s unique 12-strand, single braid construction offers a combination of good looks, superb handling, excellent strength and controlled elongation. It's flexible and is easy to coil or flake. Comes in 600’ spools or custom spliced.
FEATURES
Material: 12-strand nylon Applications: Anchor and dock lines for boats over 40’.
black
white
navy
Tensile strength of black version is approximately 10% less than the white version of the rope.
Use the following color codes when ordering: X: 0=White, 4=Black
technical data
| Stock Code | Diameter [mm] | Diameter [inch] | Weight [lbs/100′] | Tensile [lbs] |
|---|---|---|---|---|
| C111X-20-00600 | 16 | 5/8 | 9.90 | 10,300 |
| C111X-24-00600 | 18 | 3/4 | 14.00 | 13,400 |
| C111X-28-00600 | 22 | 7/8 | 17.20 | 21,100 |
| C111X-32-00600 | 25 | 1 | 25.80 | 24,900 |
| C111X-36-00600 | 28 | 1.125 | 34.00 | 34,900 |
| C111X-40-00600 | 30 | 1.25 | 36.00 | 41,000 |
| C111X-50-00600 | 36 | 1.5 | 55.50 | 48,000 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal
