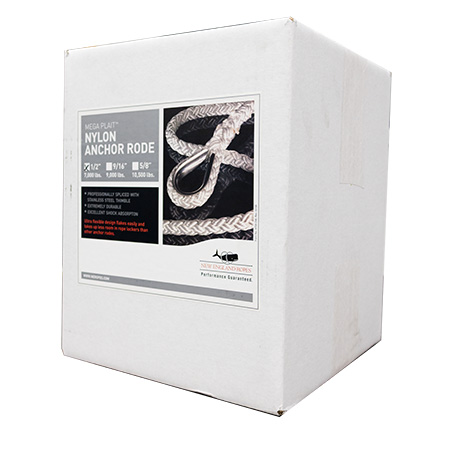

Mega Plait Anchor Rodes
Mega Plait line is designed for use in mechanical windlasses without abrading or fraying. Made of high-quality premium nylon, this rope is supple and easy to handle. It flakes and coils tightly and takes up less space than traditional nylon rodes in your anchor locker. We professionally splice each line with a stainless thimble and a heat-sealed bitter end.
This product also comes pre-spliced with chain.
technical data – Mega Plait
| Stock Code | Diameter [mm] | Diameter [inch] | Length [ft] | Weight [lbs/100′] | Tensile [lbs] |
|---|---|---|---|---|---|
| C5070-16-00150 | 12 | 1/2 | 200 | 6.20 | 8,000 |
| C5070-16-00250 | 12 | 1/2 | 250 | 6.20 | 8,000 |
| C5070-20-00150 | 16 | 5/8 | 150 | 9.30 | 11,000 |
| C5070-20-00250 | 16 | 5/8 | 200 | 9.30 | 11,000 |
technical data – Mega Plait to Chain
| Stock Code | Diameter [mm] | Diameter [inch] | Chain Diameter [inch] | Length [ft] | Weight [lbs/100′] | Tensile [lbs] |
|---|---|---|---|---|---|---|
| C50H80-16-00250 | 12 | 1/2 | 1/4 | 250 | 6.20 | 8,000 |
| C50H80-20-00250 | 16 | 5/8 | 5/16 | 250 | 9.30 | 11,000 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal
