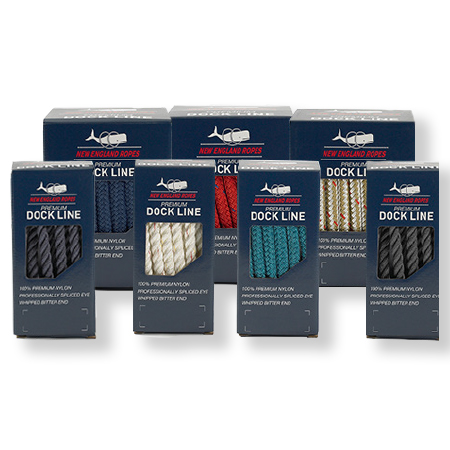

Pre-Packaged Dock Lines
Pre-Packaged, premium nylon dock lines
Professionally manufactured and hand spliced, our packaged Premium 3-Strand and Double Braid dock lines ship to you ready to use.
Premium 3-Strand nylon dock lines are made utilizing a four-stage balanced construction with heat stabilization for a durable, long-lasting rope. This attention to detail produces a dock line that is easy to handle and will not harden with age. They are professionally hand spliced with five tucks, a whipped bitter end and a 12" eye.
Our Double Braid is the strongest and easiest-to-handle line you can buy that stays flexible throughout its service life. The core and cover are constructed from the highest quality treated nylon.
The combination of high-grade marine nylon, special torque-balanced construction, and a unique stabilization process produces a long-wearing, easy-to-handle line that resists kinking. Our double braid lines offer controlled elongation and excellent abrasion resistance. Double braid lines stretch slightly less but are stronger than three strand lines.
FEATURES
3 Strand Material:3-Strand braided nylon Double BraidCover: nylon; Core: nylon Applications:dock line Note that the "X" in the part numbers listed in the table below are place holders for color codes.
technical data
Tensile strength of black version is approximately 5% less than the white version of the rope.
Use the following color codes when ordering: X: 0=White, 3=Navy, 4=Black
| Stock Code | Diameter [inch] | Length [m] | Weight [lbs/100′] | Tensile [lbs] |
|---|---|---|---|---|
| C605X-12-00015 | 3-Strand | 15 ft. | 3/8 | 4.6 | 3.50 | 4,250 |
| C605X-12-00020 | 3-Strand | 20 ft. | 3/8 | 6.1 | 3.50 | 4,250 |
| C605X-12-00025 | 3-Strand | 25 ft. | 3/8 | 7.6 | 3.50 | 4,250 |
| C605X-16-00015 | 3-Strand | 15 ft. | 1/2 | 4.6 | 6.30 | 7,500 |
| C605X-16-00025 | 3-Strand | 25 ft. | 1/2 | 7.6 | 6.30 | 7,500 |
| C605X-16-00035 | 3-Strand | 35 ft. | 1/2 | 10.7 | 6.30 | 7,500 |
| C605X-20-00015 | 3-Strand | 15 ft. | 5/8 | 4.6 | 9.60 | 11,650 |
| C605X-20-00025 | 3-Strand | 25 ft. | 5/8 | 7.6 | 9.60 | 11,650 |
| C605X-20-00035 | 3-Strand | 35 ft. | 5/8 | 10.7 | 9.60 | 11,650 |
| C605X-20-00040 | 3-Strand | 40 ft. | 5/8 | 12.2 | 9.60 | 11,650 |
| C605X-20-00050 | 3-Strand | 50 ft. | 5/8 | 15.2 | 9.60 | 11,650 |
| C605X-20-00025 | 3-Strand | 25 ft. | 3/4 | 7.6 | 13.70 | 17,150 |
| C605X-24-00035 | 3-Strand | 35 ft. | 3/4 | 10.7 | 13.70 | 17,150 |
| C605X-24-00050 | 3-Strand | 50 ft. | 3/4 | 15.2 | 13.70 | 17,150 |
technical data Double Braid
Tensile strength of black version is approximately 5% less than the white version of the rope.
Use the following color codes when ordering: X: 63 = Navy; 53 = Blue; 52 = Hunter; 11 = Red; 14 = Black; 17 = Teal; 58 = Grey
| Stock Code | Diameter [inch] | Length [m] | Weight [lbs/100′] | Tensile [lbs] |
|---|---|---|---|---|
| C50XX-12-00015 | Double Braid | 15 ft. | 3/8 | 4.6 | 4.20 | 4,800 |
| C50XX-12-00025 | Double Braid | 25 ft. | 3/8 | 7.6 | 4.20 | 4,800 |
| C50XX-16-00015 | Double Braid | 15 ft. | 1/2 | 4.6 | 7.00 | 8,000 |
| C50XX-16-00025 | Double Braid | 25 ft. | 1/2 | 7.6 | 7.00 | 13,100 |
| C50XX-16-00035 | Double Braid | 35 ft. | 1/2 | 10.7 | 7.00 | 8,000 |
| C50XX-20-00015 | Double Braid | 15 ft. | 5/8 | 4.6 | 10.00 | 13,100 |
| C50XX-20-00025 | Double Braid | 25 ft. | 5/8 | 7.6 | 10.00 | 13,100 |
| C50XX-20-00035 | Double Braid | 35 ft. | 5/8 | 10.7 | 10.00 | 13,100 |
| C50XX-20-00040 | Double Braid | 40 ft. | 5/8 | 12.2 | 10.00 | 13,100 |
| C50XX-20-00050 | Double Braid | 50 ft. | 5/8 | 15.2 | 10.00 | 13,100 |
| C50XX-24-00025 | Double Braid | 25 ft. | 3/4 | 7.6 | 15.00 | 20,500 |
| C50XX-24-00035 | Double Braid | 35 ft. | 3/4 | 10.7 | 15.00 | 20,500 |
| C50XX-24-00050 | Double Braid | 50 ft. | 3/4 | 15.2 | 15.00 | 20,500 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal
