V-100
The ultimate in high load performance.

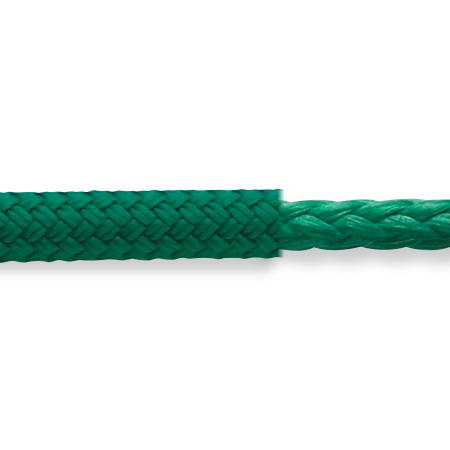

V-100 features a braided 100% Vectran® 12-strand single braid core treated with our unique marine-tech coating with a highly durable and attractive polyester cover.
FEATURES
Material: Cover: Polyester; Core: Vectran® Applications: main halyards, genoa halyards, afterguys, guysDESCRIPTION
V-100 is a very strong, low stretch, high-tech line for its size and it has good abrasion resistance and virtually no creep. It works flawlessly around tight sheaves even under extreme loads.
white-with-tracer
red
red-with-tracer
green
green-with-tracer
blue
Blue-with-tracer
black
black-with-tracer
technical product data
| Product Name | Diameter [mm] | Diameter [inch] | Weight [lbs/100′] | Tensile [lbs] |
|---|---|---|---|---|
| C282*-05-00600 | 5 | 3/16 | 1.50 | 2,400 |
| C282*-06-00600 | 6 | 1/4 | 2.10 | 4,600 |
| C282*-08-00600 | 8 | 5/16 | 3.50 | 8,600 |
| C282*-09-00600 | 9 | 23/64 | 4.40 | 9,100 |
| C282*-10-00600 | 10 | 3/8 | 5.30 | 12,600 |
| C282*-11-00600 | 11 | 7/16 | 6.50 | 15,000 |
| C282*-12-00600 | 12 | 1/2 | 7.10 | 19,200 |
| C282*-14-00600 | 14 | 9/16 | 9.90 | 23,500 |
| C282*-16-00600 | 16 | 5/8 | 13.40 | 26,000 |
| C282*-18-00600 | 18 | 3/4 | 17.50 | 33,620 |
Typing errors and technical changes reserved. The data are typical values without warranty or guarantee. For questions we are always at your disposal
